Sytong Night vision device HT-66 / NV850 German Edition - Frankonia Wholesale B2B ✓ Germany ✓ International
PRODUCT DETAILS
- SONY CMOS sensor
- clean and little pixelated image reproduction
- no image delays when panning
- focusable IR RADIATOR
- no fading

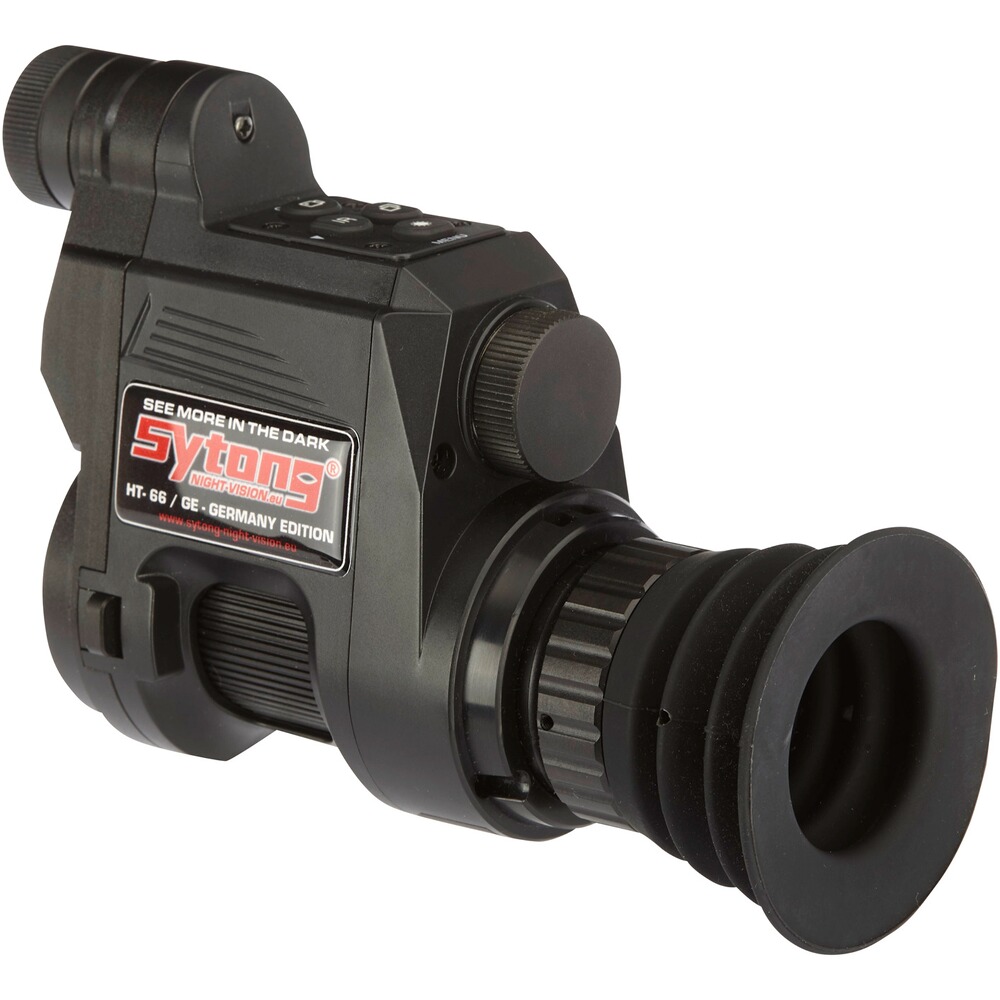

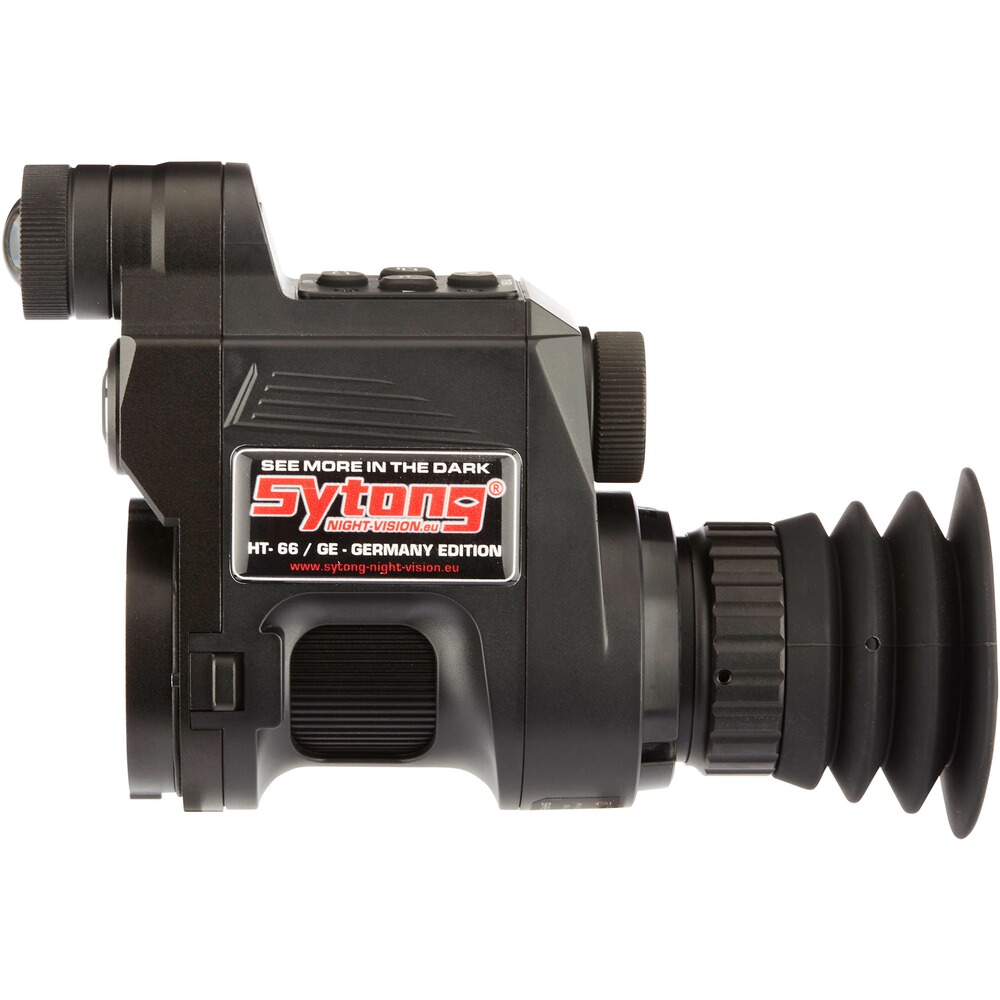

The SYTONG HT-66 NV 850 GE , a dual-use attachment for free hand observation or for attachment to the rifle scope. Thanks to the supplied 45 mm adapter and the bayonet lock used, the device can be mounted on the rifle scope and is ready for use in a very short time. There is no change to the assembly here and the rifle does not have to be zeroed in again.
resolution and image quality
The HT-66 GE has a built-in Sony CMOS sensor and therefore has many advantages. Thanks to the high-quality sensor, the image is reproduced clearly and with little pixelation. The device's 16 mm lens creates a sharp image at various distances. Attaching the device to the eyepiece has the advantage that there is no loss of transmission through the coated lenses compared to the attachment to the objective. The blinding of the eye is prevented by the sensor because the brightness is regulated more quickly automatically. This makes it well suited for use in the forest. Pulling along with moving game is possible here without any problems and there are no image delays. The focusable IR radiator creates a larger detection range and a response of up to 150 m is possible.
display and operation
Another advantage of the device is the OLED display, which can be dimmed down to 10% at the touch of a button. The integrated gyrometer with rotation and inclination angle display is also a functional feature of the device. Another important feature of the device is its silent operation. All keyboard buttons and operating units are rubberized and work quietly. The device has been tested to be bulletproof up to 6000 joules with caliber 9.3 mm and 300 Win Mag. Replacing the SD card is easy and recorded photos and videos can be shared and sent via the in-house app. Thanks to the device's diopter compensation, it can also be used by people who wear glasses without visual aids.
The device weighs just 250 g and therefore has little influence on the overall weight of the rifle.
Other properties:
- USB-C port (for data transfer and charging)
- Suitable for day and night (day mode - color image, night mode - black and white)
- Diotrial compensation for spectacle wearers
- Live image transmission
- no additional IR radiator required (internal radiator adjustable in 33 levels)
- including 45mm adapter for mounting
- 18650 Li-Ion standard battery 1200 mAh
- XSTAR USB charger with charge level indicator for 18650 Li-Ion batteries
- Sealing rings for device bayonet mount and device battery / battery compartment cover
- Compensation tape for eyepiece (for diameter adjustment ADAPTER and protection against scratches on the scope
- Cotton equipment storage bag
- USB charging cable / data cable
Technical specifications:
- DUAL-USE attachment device
- Dimensions (LxWxH): 10.6x4.7x9.7 cm
- Bulletproof up to 6000 joules
- focusable 16 mm lens
- Field of view at 100 m - 32 m
- Focus: 3 - infinity
- Digital magnification: 1 - 3.5
- optical magnification: x2
- diopter compensation
- suitable for day and night
- photo resolution: 2608x1944 (5 megapixels)
- video resolution: 1920x1080 (Full HD)
- power of the integrated IR illuminator: 5W
- IR Wavelength: 850 nm adjustable in 3 levels
- Range of the focusable infrared heater: approx. 280 m
- USB-C connection
- Weight 250 g
Note: The SYTONG HT-66 GERMAN EDITION has been approved and permitted by the German authorities for possession. Please note the respective state hunting law.
Legal notice for Germany:
The SYTONG HT- 66 / NV 850 DUAL-USE standard EUROPA device version is banned by the authorities in Germany because of the switchable crosshair reticle and red directional laser (even if deactivated), and is one of the prohibited items under Section 40 of the Weapons Act.
If you are checked by the police and customs, you can lose your weapons legal reliability.
