Nightlux Thermal imaging attachment JSA TA 425 - Frankonia Wholesale B2B ✓ Germany ✓ International

(2)End Customer Reviews (2)
  • 0/1252

Nightlux Thermal imaging attachment JSA TA 425

Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Thermal imaging attachment JSA TA 425, Nightlux
Item number:
2010124-99
(2)End Customer Reviews (2)
  • 0/1252

Nightlux Thermal imaging attachment JSA TA 425

Dealer price:
-
Retail Price:
1.420,00 €
Availability:
-
Availability:
-

    PRODUCT DETAILS

    item description
    • high detection range
    • automatic hotspot tracking
    • can also be used for dual use
    • contrast and brightness individually adjustable

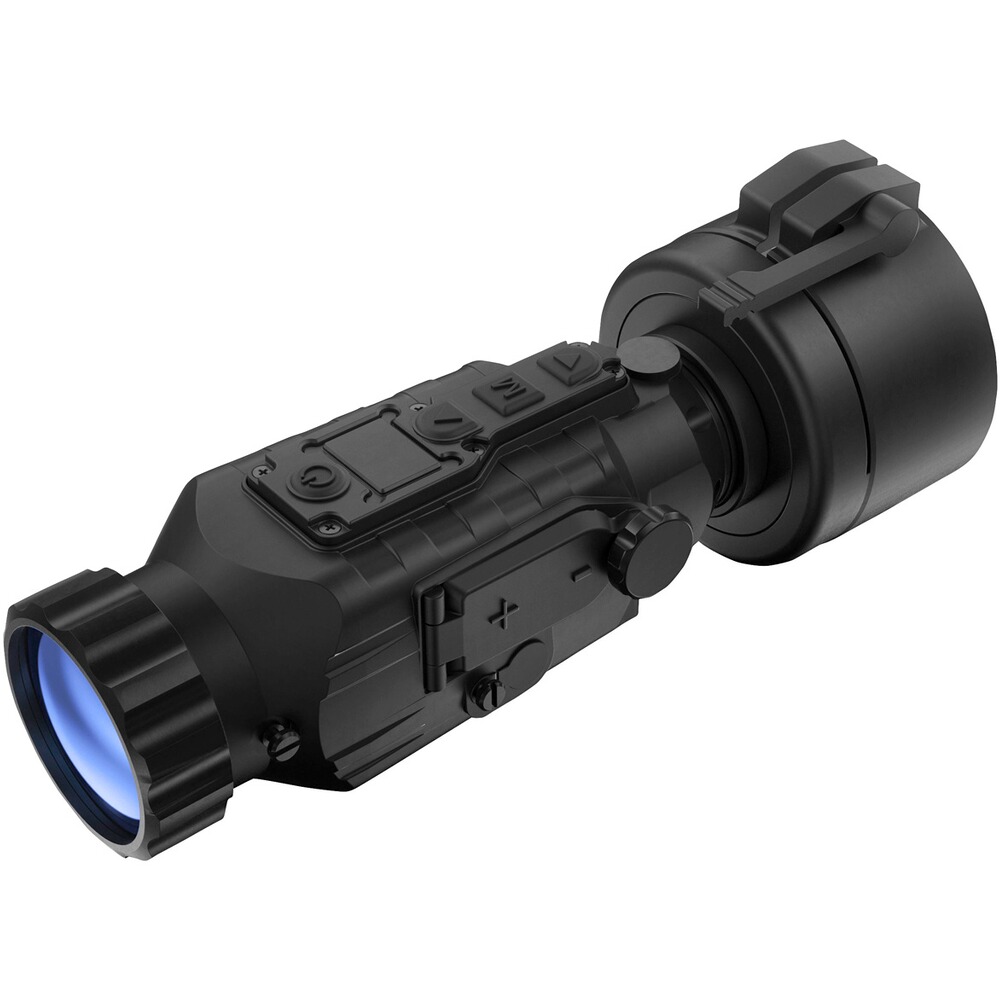

    The thermal imaging attachment JSA TA425 from Nightlux impresses at first glance with its compact design with dimensions of only 15x5.2x5.7 cm (LxWxH) and a weight of only 490 g.

    The VOx sensor 400x300 pixels with a pitch of 17 µm creates a high-contrast image display under all weather conditions. Three different contrast modes (enhanced, highlight and natural) together with several color modes ensure an image that is optimal for the environment. Alternatively, brightness and contrast can be adjusted to individual preferences. With a NETD value (indicates how small a temperature difference may be in order to be resolved by the IR camera) of 50mK @F1.0, an exact response is possible even in the worst visibility conditions. The OLED screen with 1024x768 pixels guarantees a high level of detail display up to at least 6x zoom of the daylight optics. With just one push of a button, the image is adapted to the respective environment and can optimally highlight the object to be observed.

    The device can be used handheld as a monocular observation device. The JSA TA425 thermal imaging attachment can be mounted on daylight optics using a Rusan adapter (not included in the scope of delivery).

    The waterproof (IP67) device is powered by standardized CR123A batteries.

    As a dual-use device, it can also be used as an attachment on target optics with the appropriate official approval. Recommended shooting distance up to 80 - 100 m.

    Technical specifications

    • OLED screen with 1024x768 pixels
    • human detection range: 700 m
    • vehicle detection range: 1,700 m
    • detector resolution: 400x300 px; 17µm pitch; VOx
    • NETD: ≤50mk @ 25℃
    • spectral range: 8μm～14μm
    • lens focal length: 25mm F1.1
    • eyepiece diameter: 20mm
    • field of view: 14° x 11°
    • digital zoom: 2x, 4x
    • automatic hotspot tracking
    • contrast + Brightness: individually adjustable
    • weight: approx. 490 g
    • dimensions (LxWxH): 15x5.2x5.7 cm
    • device protected according to IP67
    • operating temperature -30°C to +50°C
    • refresh rate: 50 Hz (PAL) / 60 Hz (NSTC）
    • Operation with 2x CR123 lithium or via USB power bank (optionally available)
    • Operating time: up to 2.5 hours at 20℃

    Included:

    • Cordura bag with shoulder strap
    • USB cable type C
    • 2x battery CR123A
    • Dual battery charger
    • 7 pole cable for power bank operation
    • microfiber cloth
    • neoprene bag
    • operation manual
    Details on product safety
    As a responsible trading company, we attach great importance to transparency and compliance with legal requirements. Under the EU regulation, we are obliged to provide information about the responsible economic operator. This operator is responsible for compliance with EU regulations on our products.
    Responsible economic operator according to EU regulation

    Manufacturer

    Guide Sensmart Technology GmbH
    Neumeyerstrasse 30
    90411 Nürnberg, DE

    EU Responsible Person

    Guide Sensmart Technology GmbH
    Neumeyerstrasse 30
    90411 Nürnberg, DE
